Vector3-Lerp
移動の線形補完をしてくれるLerp。らーぷって読むのかな?
docs.unity3d.com
Vector3 Lerp(Vector3 a、 Vector3 b、float t);
Vector3.Lerp(始まりの位置, 終わりの位置, 現在の位置)
tの値が0~1に動くようにすると、a~bへ動くVector3の値が返ってくる
tの値の変化
始まりの位置/終わりの位置は分かるけど、3つ目のfloatが分かりにくい。
0~1で変化するようにしないといけない。

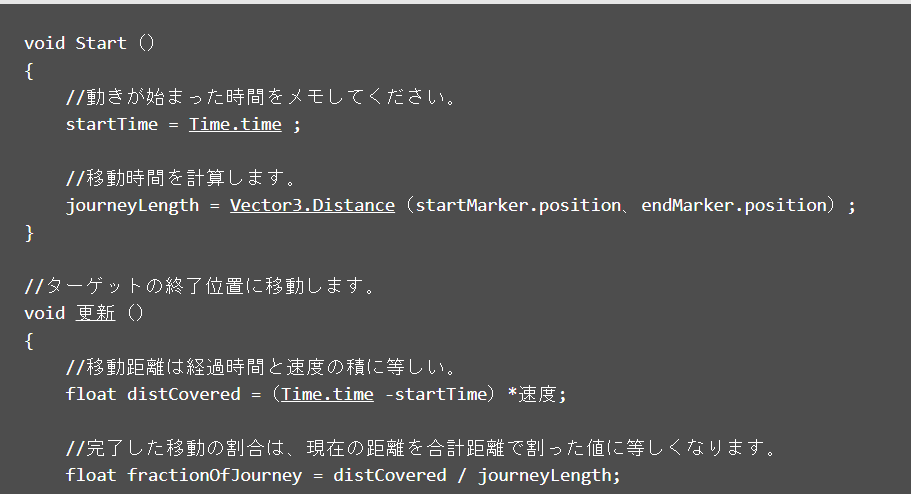

公式リファレンスではこんな感じ
tの値を動かすのめっちゃ大変やん・・・
時間×速度=距離という学生の頃によく使った公式を思い出す必要がある!久しぶりすぎてそんな基礎的なことすら忘れてた。
実装している参考記事
ritsuka.dev
もしくはTimedeltaTime(*speed)で数字を増やしてもよい。1を超えた分は勝手に丸めてくれるみたい
daichitakezawa.hatenablog.com
Timedeltaを使う方法と公式リファレンスの方法、どう動きが違うんだろう?
キーを押したら動かす
キーを押したら、1m先にすいーって動くスクリプトを作ってみたい。
Lerp関数は、Updateなどずっと実行してくれるところに書かないといけない。
teratail.com
でもキーを押したらその中の処理をずっと実行ってどうやるんだっけ・・・?
コルーチンか??
コルーチンのUnity公式ドキュメントで、Input.GetKeyの中でFade処理をしている!
docs.unity3d.com
こちらのコルーチンを使ったスクリプトを使ったらできた!
qiita.com
こんな感じ!
using System;
using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class move : MonoBehaviour
{
[SerializeField] private GameObject _Obj;
[SerializeField] private float _TravelTime= 1.0f;
[SerializeField] private float _Length = 1.0f;
void Update()
{
if (Input.GetKeyDown(KeyCode.Space))
{
Vector3 _nowPos = _Obj.transform.position;
Vector3 _targetPos = new Vector3(_nowPos.x + _Length, _nowPos.y, _nowPos.z);
StartCoroutine(AnimateCoroutine(_Obj.transform, _TravelTime, _targetPos, null));
}
}
IEnumerator AnimateCoroutine(Transform transform, float time, Vector3? position, Quaternion? rotation)
{
var currentPosition = transform.position;
var currentRotation = transform.rotation;
var targetPosition = position ?? currentPosition;
var targetRotation = rotation ?? currentRotation;
var sumTime = 0f;
while (true)
{
sumTime += Time.deltaTime;
var ratio = sumTime / time;
transform.SetPositionAndRotation(
Vector3.Lerp(currentPosition, targetPosition, ratio),
Quaternion.Lerp(currentRotation, targetRotation, ratio)
);
if (ratio > 1.0f)
{
break;
}
yield return null;
}
}
}

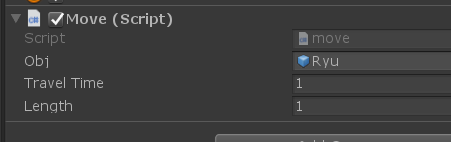

目的地までの移動時間と移動する距離はインスペクタで設定。
これでできた!
最後に
Lerp意外と奥が深かった
Lerp以外にも弧を描いて動くSlerpなどある
